用HTML5-Canvas 写一个桌球游戏!

2019年8月6日 280点热度 0人点赞 0条评论

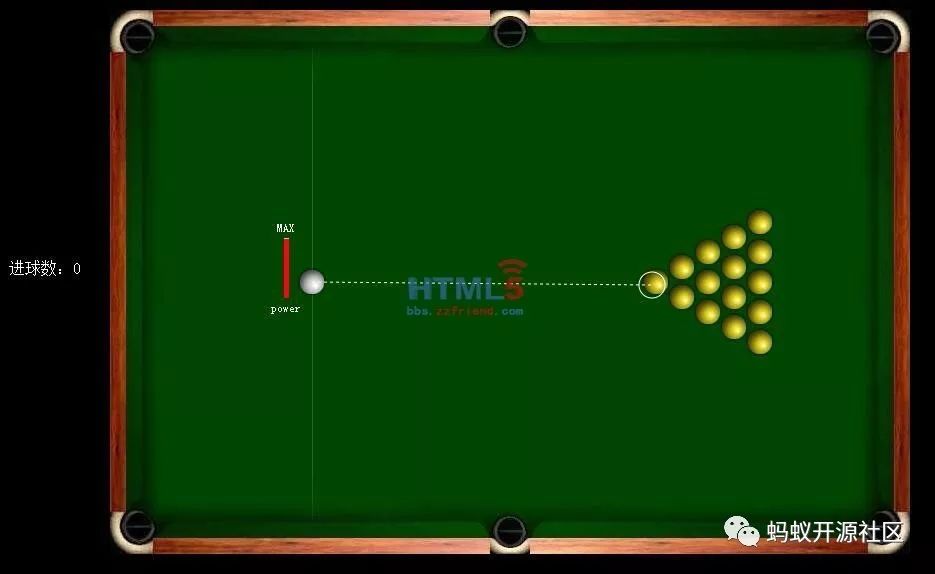

这只是一个简单的DEMO。游戏性、游戏规则没怎么考虑,如果有兴趣细化的朋友可以细化一下,比如细化一下规则,游戏开关,加个声音,细化一下进球检测,更严谨甚至可以去查下击球力度、桌面真实摩擦力等来把游戏弄的更像游戏。我只是给个编程思路,做一个DEMO而已,玩起来估计还是会很爽快的~~






整个桌球游戏就两个类,一个是球,一个是辅助瞄准线。如果想把改游戏弄的更复杂,还可以再抽象一个形状类,用于检测球与边角的碰撞以及进球。我做的这个游戏采取了最简单的墙壁碰撞检测,所以没有进行球与不规则形状的碰撞检测,接下来就一步一步来:


【球】

var Ball = function(x , y , ismine){this.x = x;this.y = y;this.ismine = ismine;this.oldx = x;this.oldy = y;this.vx = 0;this.vy = 0;this.radius = ballRadius;this.inhole = false;this.moving = true;}Ball.prototype = {constructor:Ball,_paint:function(){var b = this.ismine?document.getElementById("wb") : document.getElementById("yb")if(b.complete) {ctx.drawImage(b , this.x-this.radius , this.y-this.radius , 2*this.radius , 2*this.radius);}else {b.onload = function(){ctx.drawImage(b , this.x-this.radius , this.y-this.radius , 2*this.radius , 2*this.radius);}}},_run:function(t){this.oldx = this.x;this.oldy = this.y;this.vx = Math.abs(this.vx)<0.1? 0 : (this.vx>0? this.vx-mcl*t : this.vx+mcl*t);this.vy = Math.abs(this.vy)<0.1? 0 : (this.vy>0? this.vy-mcl*t : this.vy+mcl*t);// this.vx += this.vx>0? -mcl*t : mcl*t;// this.vy += this.vy>0? -mcl*t : mcl*t;this.x += t * this.vx * pxpm;this.y += t * this.vy * pxpm;if((this.x<50 && this.y<50) || (this.x>370 && this.x<430 && this.y<50) || (this.x > 758 && this.y<50) || (this.x<46 && this.y>490) || (this.x>377 && this.x<420 && this.y>490) || (this.x > 758 && this.y>490)){this.inhole = true;if(this.ismine){var that = this;setTimeout(function(){that.x = 202;that.y = canvas.height/2;that.vx = 0;that.vy = 0;that.inhole = false;} , 500)}else {document.getElementById("shotNum").innerHTML = parseInt(document.getElementById("shotNum").innerHTML)+1}}else {if(this.y > canvas.height - (ballRadius+tbw) || this.y < (ballRadius+tbw)){this.y = this.y < (ballRadius+tbw) ? (ballRadius+tbw) : (canvas.height - (ballRadius+tbw));this.derectionY = !this.derectionY;this.vy = -this.vy*0.6;}if(this.x > canvas.width - (ballRadius+tbw) || this.x < (ballRadius+tbw)){this.x = this.x < (ballRadius+tbw) ? (ballRadius+tbw) : (canvas.width - (ballRadius+tbw));this.derectionX = !this.derectionX;this.vx = -this.vx*0.6;}}this._paint();if(Math.abs(this.vx)<0.1 && Math.abs(this.vy)<0.1){this.moving = false;}else {this.moving = true;}}}

球类的属性:x,y球的位置,vx,vy球的水平速度以及求得垂直速度,ismine代表是白球还是其他球(不同球在_paint方法中绘制的图片不一样),oldx,oldy用于保存球的上一帧位置,不过暂时还没用上,应该有用吧。_paint方法没什么好说的,_run方法就是跟踪小球位置,根据小球每一帧的时间来算出小球的位移增量以及速度增量,mcl和pxpm都是常量,mcl是摩擦力,pxpm是大概算个像素和现实转换比例。。。。然后就是碰撞检测,这个很容易理解了,就计算小球的位置有没有超过边界,超过了就反弹。不过这种碰撞检测很不严谨,如果真要做游戏建议用更复杂一些的。还有就是根据小球的速度来让小球静止。

【辅助线】

var dotLine = function(x0,y0,x1,y1){this.x0 = this.x0;this.y0 = this.y0;this.x1 = this.x1;this.y1 = this.y1;this.dotlength = 3;this.display = false;}dotLine.prototype = {constructor:dotLine,_ready:function(){this.length = Math.sqrt(Math.pow(this.y1 - this.y0 , 2)+Math.pow(this.x1 - this.x0 , 2));this.dotNum = Math.ceil(this.length/this.dotlength);},_paint:function(){this._ready();xadd = this.dotlength*(this.x1 - this.x0)/this.length;yadd = this.dotlength*(this.y1 - this.y0)/this.length;ctx.save();ctx.beginPath();for(var i=1;i<=this.dotNum;i++){if(i%2!==0){ctx.moveTo(this.x0+(i-1)*xadd , this.y0+(i-1)*yadd);ctx.lineTo(this.x0+i*xadd , this.y0+i*yadd);}}ctx.strokeStyle = "#FFF";ctx.stroke();ctx.beginPath();ctx.arc(this.x1 , this.y1 , ballRadius-2 , 0 , 2*Math.PI);ctx.stroke();ctx.restore();}}

就是画虚线,这个比较简单了,获取鼠标的位置和白球位置,然后在两者之间隔一段距离画条线,然后就成虚线了。

【多球碰撞检测】

function collision(){for(var i=0;i<balls.length;i++){for(var j=0;j<balls.length;j++){var b1 = balls,b2 = balls[j];if(b1 !== b2 && !b1.inhole && !b2.inhole){var rc = Math.sqrt(Math.pow(b1.x - b2.x , 2) + Math.pow(b1.y - b2.y , 2));if(Math.ceil(rc) < (b1.radius + b2.radius)){if(!b1.moving && !b2.moving) return;//获取碰撞后的速度增量var ax = ((b1.vx - b2.vx)*Math.pow((b1.x - b2.x) , 2) + (b1.vy - b2.vy)*(b1.x - b2.x)*(b1.y - b2.y))/Math.pow(rc , 2)var ay = ((b1.vy - b2.vy)*Math.pow((b1.y - b2.y) , 2) + (b1.vx - b2.vx)*(b1.x - b2.x)*(b1.y - b2.y))/Math.pow(rc , 2)//将速度增量赋给碰撞小球b1.vx = b1.vx-ax;b1.vy = b1.vy-ay;b2.vx = b2.vx+ax;b2.vy = b2.vy+ay;//修正小球碰撞距离var clength = ((b1.radius+b2.radius)-rc)/2;var cx = clength * (b1.x-b2.x)/rc;var cy = clength * (b1.y-b2.y)/rc;b1.x = b1.x+cx;b1.y = b1.y+cy;b2.x = b2.x-cx;b2.y = b2.y-cy;}}}}}

对所有小球进行遍历,计算两个小球的球心距离,如果小于两小球的半径和,则说明发生了碰撞。如果两个小球都是静止的,就不进行碰撞检测,否则进行计算碰撞后的速度增量,碰撞速度增量的求法可以直接看 小球碰撞的算法设计 ,里面讲的挺详细的,综合起来就得出了上面那一串式子了。

将速度增量赋给碰撞小球。因为两个球碰撞那一帧,两个球是有部分重叠的,所以得进行位置修正,不然小球会一直处于碰撞然后就黏在一起了,位置修正的原理也简单,算出两球的球心距离,通过勾股定理计算出两球的重叠区域的宽度,然后把宽度除于2后赋给小球新的位置,新的位置就是两个球的半径刚好等于球心距。

【鼠标动作】

canvas.addEventListener("mousedown" , function(){if(balls[0].moving) return;document.querySelector(".shotPower").style.display = "block";document.querySelector(".shotPower").style.top = balls[0].y-60 + "px";document.querySelector(".shotPower").style.left = balls[0].x-40 +"px";document.getElementById("pow").className = "animate";var x = event.clientX + document.body.scrollLeft + document.documentElement.scrollLeft - document.querySelector(".view").offsetLeft;var y = event.clientY + document.body.scrollTop + document.documentElement.scrollTop - document.querySelector(".view").offsetTop;dotline.display = true;dotline.x0 = balls[0].x;dotline.y0 = balls[0].y;dotline.x1 = x;dotline.y1 = y;window.addEventListener("mouseup" , muHandle , false);window.addEventListener("mousemove" , mmHandle , false);function mmHandle(){var x = event.clientX + document.body.scrollLeft + document.documentElement.scrollLeft - document.querySelector(".view").offsetLeft;var y = event.clientY + document.body.scrollTop + document.documentElement.scrollTop - document.querySelector(".view").offsetTop;dotline.x1 = x;dotline.y1 = y;}function muHandle(){var x = event.clientX + document.body.scrollLeft + document.documentElement.scrollLeft - document.querySelector(".view").offsetLeft;var y = event.clientY + document.body.scrollTop + document.documentElement.scrollTop - document.querySelector(".view").offsetTop;var angle = Math.atan((y - balls[0].y)/(x - balls[0].x));var h = document.getElementById("pow").offsetHeight/document.getElementById("powbar").offsetHeight;var v = 60*h;document.getElementById("pow").style.height = h*100+"%"balls[0].vx = x - balls[0].x>0 ? v*Math.abs(Math.cos(angle)) : -v*Math.abs(Math.cos(angle));balls[0].vy = y - balls[0].y>0 ? v*Math.abs(Math.sin(angle)) : -v*Math.abs(Math.sin(angle));document.getElementById("pow").className = "";window.removeEventListener("mouseup" , muHandle , false);window.removeEventListener("mousemove" , muHandle , false);dotline.display = false;document.querySelector(".shotPower").style.display = "none";}},false);

鼠标动作也比较简单,有js基础的基本上都没问题,就是鼠标按下后计算鼠标位置,然后产生辅助虚线,鼠标移动后修改辅助虚线的终点位置。鼠标按下的时候旁边产生一个力量计,我就只用用animation做动画了,然后鼠标按键抬起时通过计算力量计的大小来确定白球的速度,然后再分解成水平速度以及垂直速度赋给白球。同时取消鼠标移动以及鼠标抬起的事件绑定,把辅助虚线以及力量计隐藏。

【动画舞台】

function animate(){ctx.clearRect(0,0,canvas.width,canvas.height)var t1 = new Date();var t = (t1 - t0)/1000;collision();balls.foreach(function(){if(!this.inhole) this._run(t);});if(dotline.display){dotline.x0 = balls[0].x;dotline.y0 = balls[0].y;dotline._paint();}t0 = t1;if(!animateStop){if("requestAnimationFrame" in window){requestAnimationFrame(animate);}else if("webkitRequestAnimationFrame" in window){webkitRequestAnimationFrame(animate);}else if("msRequestAnimationFrame" in window){msRequestAnimationFrame(animate);}else if("mozRequestAnimationFrame" in window){mozRequestAnimationFrame(animate);}else {setTimeout(animate , 16);}}}

这个就是游戏每一帧的逻辑处理现场,如果小球进洞了,就不再进行绘制,如果辅助虚线的display属性设成false,就不进行辅助虚线的绘制,还有就是计算每一帧的时间。

【常量与初始化】

var canvas = document.getElementById("cas");var ctx = canvas.getContext('2d');var mcl = 1 , collarg = 0.8 , ballRadius = 15 , t0 = 0 , balls=[] , tbw = 32 , animateStop = true , powAnimation = false;var dotline;pxpm = canvas.width/20;window.onload = function(){var myball = new Ball(202 , canvas.height/2 , true);balls.push(myball);for(var i=0;i<6;i++){for(var j=0;j<i;j++){var other = new Ball(520+i*(ballRadius-2)*2 , (canvas.height-i*2*ballRadius)/2+ballRadius+2*ballRadius*j , false);balls.push(other);}}t0 = new Date();dotline = new dotLine(0,0,0,0);animateStop = false;animate();}

底部的那两个方法是写两条线相交的判定和交点的获取,实例化所有小球,把小球全部按照规律摆好,然后获取当前时间,实例化辅助虚线,动画开始。

阅读原文-演示/下载源码,还有更多更好玩的开源代码等你哦!
