本文是继笔者之前文章用css3实现惊艳面试官的背景即背景动画(高级附源码)的续篇也是本人最后一篇介绍css3技巧的文章,因为css这块知识难点不是很多,更多的在于去熟悉css3的新特性和基础理论知识。

所以写这篇文章的目的一方面是对自己工作中一些css高级技巧的总结,另一方面也是希望能教大家一些实用的技巧和高效开发css的方式,以提高在工作中的效率。

我们将学到

  • box-shadow的高级应用

  • 制作自适应的椭圆

  • 纯css3实现饼图进度动画

  • 用border来实现一个对话框样式

  • css3 filter的简单应用

  • css3伪元素实现自定义复选框

  • 在线制作css3动画的利器

正文

1.box-shadow 的高级应用

利用css3的新特性可以帮助我们实现各种意想不到的特效,接下来的几个案例我们来使用css3的box-shdow来实现,马上开始吧!

实现水波动画

知识点:box-shadow

想想我们如果不用css3,是怎么实现水波扩散的动画呢?想必一定是写一大堆的js才能实现如下的效果:


css3实现核心代码

<style>.wave {  margin-left: auto;  margin-right: auto;  width: 100px;  height: 100px;  border-radius: 100px;  border: 2px solid #fff;  text-align: center;  line-height: 100px;  color: #fff;  background: #06c url(http://p3g4ahmhh.bkt.clouddn.com/me.jpg) no-repeat center center;  background-size: 100%;  animation: wave 4s linear infinite;}@keyframes wave {    0% {        box-shadow: 0 0 0 0 rgba(245, 226, 226, 1), 0 0 0 0 rgba(250, 189, 189, 1);    }    50% {        box-shadow: 0 0 0 20px rgba(245, 226, 226, .5), 0 0 0 0 rgba(250, 189, 189, 1);    }    100% {        box-shadow: 0 0 0 40px rgba(245, 226, 226, 0), 0 0 0 20px rgba(245, 226, 226, 0);    }}</style><div class="wave"></div>

这里我们主要使用了box-shadow的多级阴影来实现的,动画部分我们使用的@keyframes,是不是感觉还行?

实现加载动画

知识点:box-shadow多阴影

加载动画大家想必也不陌生,虽然可以用很多方式实现加载动画,比如用伪元素,用gif,用js,但是更优雅的实现我觉得还是直接上css:



核心代码如下:

<style>.loading {  margin-left: auto;  margin-right: auto;  width: 30px;  height: 30px;  border-radius: 30px;  background-color: transparent;  animation: load 3s linear infinite;}@keyframes load {    0% {        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),                    inset 0 0 0 15px rgba(250, 189, 189, 0),                    40px 0 0 rgba(250, 189, 189, 0);    }    30% {        box-shadow: -40px 0 0 rgba(250, 189, 189, 1),                    inset 0 0 0 15px rgba(250, 189, 189, 0),                    40px 0 0 rgba(250, 189, 189, 0);    }    60% {        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),                    inset 0 0 0 15px rgba(250, 189, 189, 1),                    40px 0 0 rgba(250, 189, 189, 0);    }    100% {        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),                    inset 0 0 0 15px rgba(250, 189, 189, 0),                    40px 0 0 rgba(250, 189, 189, 1);    }}</style><div class="loading"></div>

我们这里也是采用box-shadow多背景来实现,也是我当时思考的一个方向,至于其他的css方案,欢迎大家和我交流。

实现对话框及对话框的不规则投影

知识点:filter和伪元素

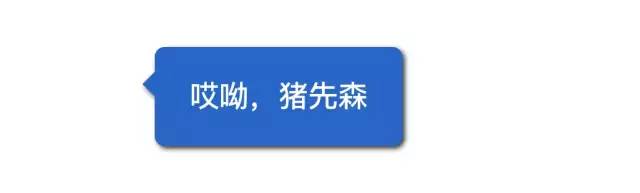

这里涉及到css滤镜的知识,不过也很简单,大家在css3官网上看看就理解了,我们直接看效果:


我们会通过filter的drop-shadow来实现不规则图形的阴影,然后利用伪元素和border来实现头部三角形:

<style>.odd-shadow{    margin-left: auto;    margin-right: auto;    width: 200px;    height: 80px;    border-radius: 8px;    color: #fff;    font-size: 24px;    text-align: center;    line-height: 80px;    background: #06c;    filter: drop-shadow(2px 2px 2px rgba(0,0,0,.8))}.odd-shadow::before{    content: '';    position: absolute;    display: block;    margin-left: -20px;    transform: translateY(20px);    width:0;    height: 0;    border: 10px solid transparent;    border-right-color: #06c;}</style>
<div class="odd-shadow">哎呦,猪先森</div>复制代码

模糊效果

知识点:filter

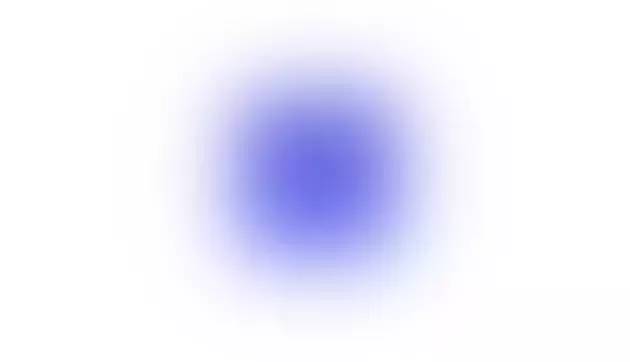

这个比较简单,这里我直接上图和代码:



filter: blur(20px)

2.制作自适应的椭圆

border-radius的出现让我们实现圆角效果提供了极大的便利,我们还可以通过对Border-radius特性的进一步研究来实现各种图形效果,接下来就让我们看看它的威力吧!

知识点:border-radius: a / b;    //a,b分别为圆角的水平、垂直半径,单位若为%,则表示相对于宽度和高度进行解析


核心代码:

<style>.br-1{  width: 200px;  height: 100px;  border-radius: 50% /10%;  background: linear-gradient(45deg,#06f,#f6c,#06c);}.br-2{  width: 100px;  border-radius: 20% 50%;}.ani{  animation: skew 4s infinite;}.ani1{  animation: skew1 4s infinite 2s;}.ani2{  animation: skew2 4s infinite 3s;}@keyframes skew{  to{    border-radius: 50%;  }}@keyframes skew1{  to{    border-radius: 20px 20px 100%;  }}@keyframes skew2{  to{    transform: rotate(360deg);  }}</style><div class="br-1 black-theme"></div><div class="br-1 black-theme ani"></div><div class="br-1 black-theme ani1"></div><div class="br-1 br-2 black-theme ani2"></div>

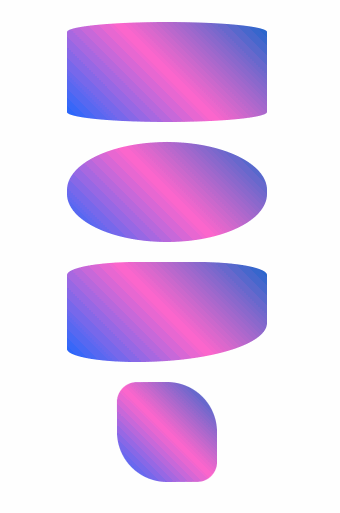

这里我们主要使用了背景渐变来实现华而不实的背景,用border-radius实现各种规格的椭圆图案。

3.纯css3实现饼图进度动画

知识点:border-radius: a b c d / e f g h; animation多动画属性;

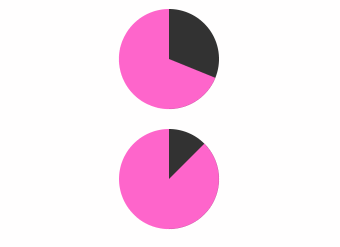

效果如下:



核心代码:

<style>.br-31{  width: 100px;  height: 100px;  border-radius: 50%;  background: linear-gradient(to right,#f6c 50%,#333 0);}.br-31::before{  content: '';  display: block;  margin-left: 50%;  height: 100%;  border-radius: 0 100% 100% 0 / 50%;  background-color: #f6c;  transform-origin: left;  animation: skin 4s linear infinite,             bg 8s step-end infinite;}@keyframes skin{  to{    transform: rotate(.5turn);  }}@keyframes bg{  50%{    background: #333;  }}.br-32::before{  animation-play-state: paused;  animation-delay: inherit;}</style><div class="br-31 black-theme"></div><div class="br-31 br-32 black-theme" style="animation-delay:-1s"></div>复制代码

这块的实现我们主要用了渐变背景,也是实现扇形进度的关键,包括代码中的如何遮挡半圆,如何对半圆做动画,如何改变旋转原点的位置等,这些虽然技巧性很强,但是我们稍微画一画,也可以实现的。

4.css3伪元素实现自定义复选框

我们都知道原生的复选框控件样式极难自定义,这对于工程师实现设计稿的难度加大了一大截。css3的出现,增加了:checked选择器,因此我们可以利用:checked和label来实现各式各样的表单选择控件,接下来让我们来看看如何实现吧!

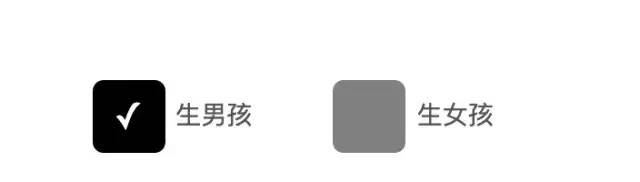

我们来看看如何实现上述自定义的复选框:

<style>.check-wrap{    text-align: center;}.checkbox{    position: absolute;    clip: rect(0,0,0,0);}.checkbox[type="checkbox"]:focus + label::before{    box-shadow: 0 0 .6em #06c;}.checkbox[type="checkbox"] + label::before{    content: '\a0'; /* 不换行空格 */    display: inline-block;    margin-right: .3em;    width: 2em;    height: 2em;    border-radius: .3em;    vertical-align: middle;    line-height: 2em; /* 关键 */    font-size: 20px;    text-align: center;    color: #fff;    background: gray;}.checkbox[type="checkbox"]:checked + label::before{    content: '\2713'; /* 对勾 */    background: black;}
label{ margin-right: 40px; font-size: 20px;}</style><div class="check-wrap"> <input type="checkbox" class="checkbox" id="check-1" /> <label for="check-1">生男孩</label> <input type="checkbox" class="checkbox" id="check-2" /> <label for="check-2">生女孩</label></div>

这里为了隐藏原生的checkbox控件,我们用了clip: rect(0,0,0,0)进行截取,然后使用checkbox的伪类:checked来实现交互。

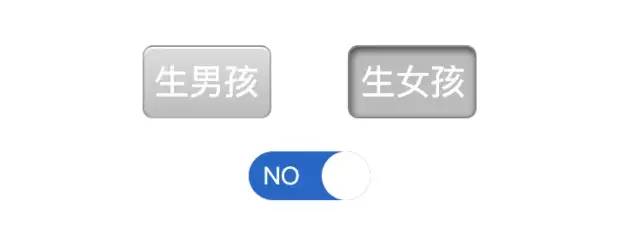

接下来扩展一下,我们来实现自定义开关:



这里原理是一样的,只不过样式做了改动,直接上代码:

<style>.check-wrap{    margin-bottom: 20px;    text-align: center;}.switch{    position: absolute;    clip: rect(0,0,0,0);}
.switch[type="checkbox"] + label{ width: 6em; height: 3em; padding: .3em; border-radius: .3em; border: 1px solid rgba(0,0,0,.2); vertical-align: middle; line-height: 2em; /* 关键 */ font-size: 20px; text-align: center; color: #fff; box-shadow: 0 1px white inset; background-color: #ccc; background-image: linear-gradient(#ddd,#bbb);}.switch[type="checkbox"]:checked + label{ box-shadow: 0.05em .1em .2em rgba(0,0,0,.6) inset; border-color: rgba(0,0,0,.3); background: #bbb;}
label{ margin-right: 40px; font-size: 14px;}
.switch-an{ position: absolute; clip: rect(0,0,0,0);}
.switch-an[type="checkbox"] + label{ position: relative; display: inline-block; width: 5em; height: 2em; border-radius: 1em; color: #fff; background: #06c; text-align: left;}
.switch-an[type="checkbox"] + label::before{ content: ''; width:2em; height: 2em; position: absolute; left: 0; border-radius: 100%; vertical-align: middle; background-color: #fff; transition: left .3s;}.switch-an[type="checkbox"] + label::after{ content: 'OFF'; margin-left: 2.6em;}.switch-an[type="checkbox"]:checked + label::before{ transition: left .3s; left: 3em;}.switch-an[type="checkbox"]:checked + label::after{ content: 'NO'; margin-left: .6em;}</style><div class="check-wrap"> <input type="checkbox" class="switch" id="switch-1" /> <label for="switch-1">生男孩</label> <input type="checkbox" class="switch" id="switch-2" /> <label for="switch-2">生女孩</label></div>
<div class="check-wrap"> <input type="checkbox" class="switch-an" id="switch-an-1" /> <label for="switch-an-1"></label></div>

是不是感觉css3提供了更强大的动画和自定义功能呢?其实我们可以实现更酷炫更实用的效果,等待你去尝试。

5.在线制作css3动画的利器

最后推荐一个在线制作各种贝塞尔曲线的工具,也是本人在做动画时经常使用的:

    cubic-bezier。

地址:https://cubic-bezier.com/#.17,.67,.83,.67
