golang gin大行其道!

下面是gin用来构建路由用到的结构代码
type Engine struct {    RouterGroup    trees            methodTrees    省略代码}// 每个http.method （GET,POST,HEAD,PUT等9种）都会构建成单独的前缀树type methodTree struct {  // 方法: GET,POST等  method string  // 对应方法的前缀树的根节点  root   *node}
//GET,POST前缀树等构成的切片type methodTrees []methodTree
type node struct {  // 节点的当前路径  path      string  // 子节点的首字母构成的字符串，数量和位置对应children切片  indices   string  // 子节点  children  []*node  // 当前匹配到的路由，处理的handler  handlers  HandlersChain  // 统计子节点优先级  priority  uint32  // 节点类型  nType     nodeType  maxParams uint8  wildChild bool  // 当前节点的全路径，从root到当前节点的全路径  fullPath  string}

用户定义路由router := gin.New()router.GET("banner/detail", PkgHandler)router.PrintTrees()router.GET("/game/detail", PkgHandler)router.PrintTrees()router.GET("/geme/detail", PkgHandler)

router.GET 调用链这里提一下HandlerFunc，就是gin常说的中间件，是一个函数类型，只要实现该函数类型就可以用作中间件来处理逻辑
func (group *RouterGroup) GET(relativePath string, handlers ...HandlerFunc) IRoutes {  return group.handle(http.MethodGet, relativePath, handlers)}
func (group *RouterGroup) handle(httpMethod, relativePath string, handlers HandlersChain) IRoutes {  absolutePath := group.calculateAbsolutePath(relativePath)  handlers = group.combineHandlers(handlers)  group.engine.addRoute(httpMethod, absolutePath, handlers)  return group.returnObj()}
func (engine *Engine) addRoute(method, path string, handlers HandlersChain) {  assert1(path[0] == '/', "path must begin with '/'")  assert1(method != "", "HTTP method can not be empty")  assert1(len(handlers) > 0, "there must be at least one handler")
  debugPrintRoute(method, path, handlers)  // 根据method取出当前方法前缀树的root  root := engine.trees.get(method)  if root == nil {    root = new(node)    root.fullPath = "/"    engine.trees = append(engine.trees, methodTree{method: method, root: root})  }  // 这里就是构建路由前缀树的逻辑（避免阅读不友好，这里就不继续贴下去了）  root.addRoute(path, handlers)}

先简述下net/http包处理的整个流程1. 解析数据包，解析成http请求协议，存在http.request， 包装请求头，请求体，当前连接conn【read(conn) 读取数据】2. 外部实现handler接口，调用外部逻辑处理请求（这里外部就是gin）3. 根据用户逻辑，返回http响应给客户端  存在http.response，包装响应头，响应体，当前连接conn【write(conn) 返回数据】
这是net/http包提供给外部，用于处理http请求的handler接口，只要外部实现了此接口，并且传递给http.server.Handler，就可以执行用户handler逻辑，gin的Engine实现了Handler 接口，所以gin就介入了整个http请求流程中的用户逻辑那部分。即上面的第二点。

type Handler interface {  ServeHTTP(ResponseWriter, *Request)}
func ListenAndServe(addr string, handler Handler) error {  server := &Server{Addr: addr, Handler: handler}  return server.ListenAndServe()}
serverHandler{c.server}.ServeHTTP(w, w.req)
func (sh serverHandler) ServeHTTP(rw ResponseWriter, req *Request) {  handler := sh.srv.Handler  if handler == nil {    handler = DefaultServeMux  }  if req.RequestURI == "*" && req.Method == "OPTIONS" {    handler = globalOptionsHandler{}  }    //在这里最终会调用用户传进来的handler接口的实现，并且把rw = http.response，req = http.request 传递到gin处理逻辑里面去，这样gin既能读取http请求内容，也能操作gin输出到客户端  handler.ServeHTTP(rw, req)}
// ServeHTTP conforms to the http.Handler interface.// gin.Engine实现了http.Handler接口，可以处理请求func (engine *Engine) ServeHTTP(w http.ResponseWriter, req *http.Request) {  c := engine.pool.Get().(*Context)  c.writermem.reset(w)  c.Request = req  c.reset()
  engine.handleHTTPRequest(c)    //请求完成，放回池中  engine.pool.Put(c)}

func (engine *Engine) handleHTTPRequest(c *Context) {  httpMethod := c.Request.Method  rPath := c.Request.URL.Path  unescape := false  if engine.UseRawPath && len(c.Request.URL.RawPath) > 0 {    rPath = c.Request.URL.RawPath    unescape = engine.UnescapePathValues  }

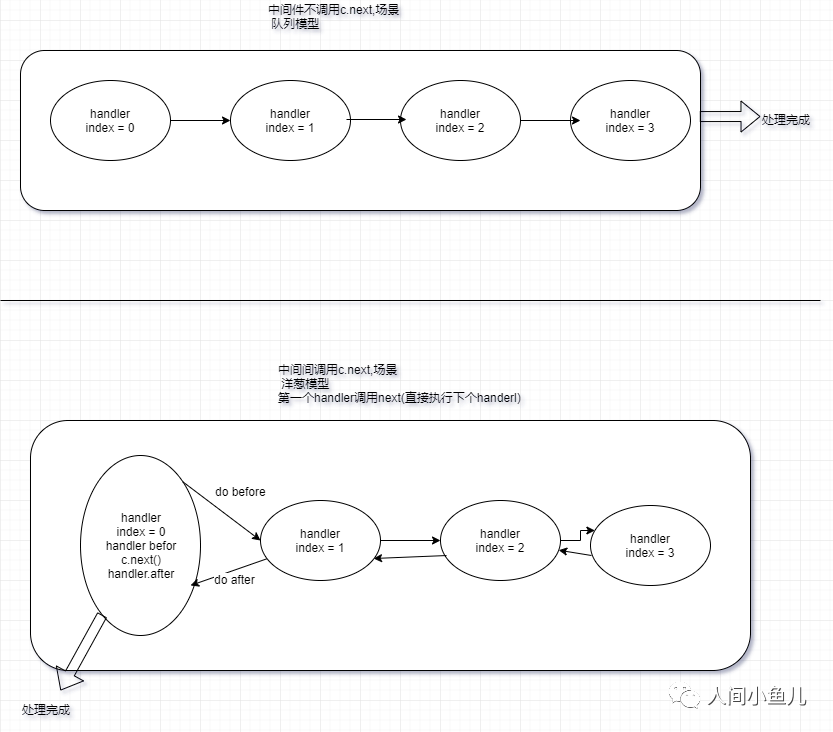

  if engine.RemoveExtraSlash {    rPath = cleanPath(rPath)  }  fmt.Printf("httpMethod: %s, rPath: %s\n", httpMethod, rPath)  // Find root of the tree for the given HTTP method  t := engine.trees  for i, tl := 0, len(t); i < tl; i++ {    if t[i].method != httpMethod {      continue    }    root := t[i].root    // Find route in tree        // 根据请求路径获取对应方法树上的节点    value := root.getValue(rPath, c.Params, unescape)    if value.handlers != nil {            // 获取对应节点上的中间件（即handler）      c.handlers = value.handlers      fmt.Printf("c.handlers: %d\n", len(c.handlers))      c.Params = value.params      c.fullPath = value.fullPath      c.Next()      c.writermem.WriteHeaderNow()      return    }    省略代码  }        省略代码}handlers有2种方式1. 在handler中不手动调用c.next的话，类似于队列，先进先执行2. 如果手动调用c.next的话，类似于洋葱模型，包裹剥开概念的执行func (c *Context) Next() {    //c.index从-1开始  c.index++  for c.index < int8(len(c.handlers)) {    c.handlers[c.index](c)    c.index++  }}中断整个调用链，从当前函数返回func (c *Context) Abort() {    //直接将中间件索引改成最大限制的值，从而退出for循环    c.index = abortIndex }

serverHandler{c.server}.ServeHTTP(w, w.req)w.cancelCtx()if c.hijacked() {   return}flush数据, write到connw.finishRequest()
